PD064VT8 LCD 31pins TTL 6.4 inch VGA 640x480 WLED TFT LCD Display Screen
Product Details:
| Place of Origin: | Japan |
| Brand Name: | yj |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | $92 |
|
Detail Information |
|||
| Type: | TFT, TFT | Display Size: | 6.4" |
|---|---|---|---|
| Supplier Type: | PD064VT8 | Model: | PD064VT8 |
| Size: | 6.4'' | Resolution: | 640*480 |
| Product Name: | PD064VT8 | Delivery: | Worldwide |
| Quality Warranty: | 90days | Toush Screen: | Without |
| Interface: | LVDS | Brightness: | 400cd/m2 |
| Highlight: | 6.4 inch touch lcd panel,6.4 inch lcd display panel,640*480 touch lcd panel |
||
Product Description

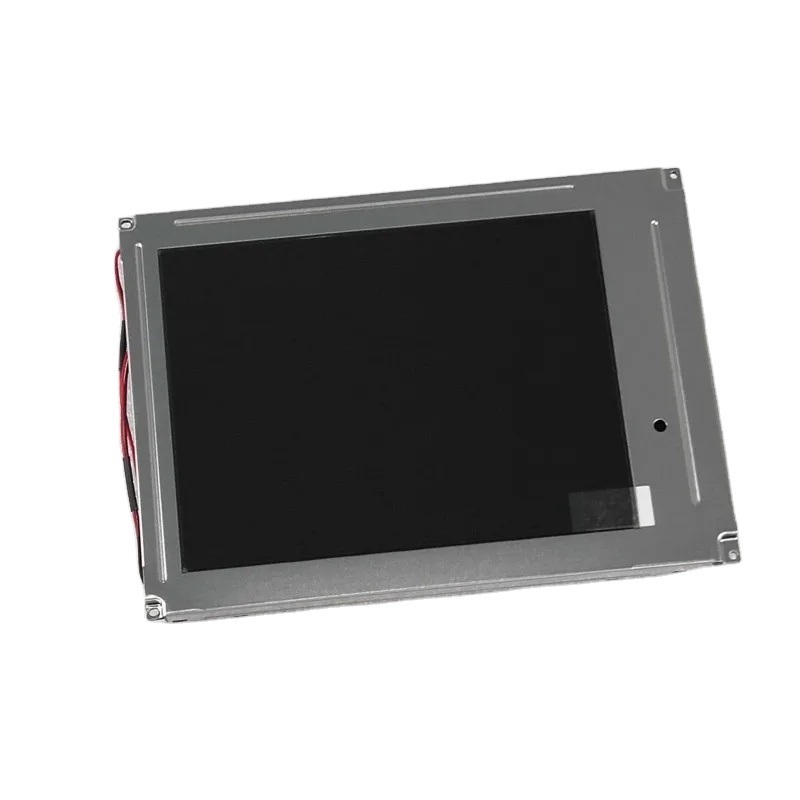

The PD064VT8 is a 6.4-inch industrial TFT-LCD module from PVI (Prime View International). It is a VGA resolution (640 *480) color TFT display designed for industrial equipment, medical devices, and embedded HMI systems. It is known for its wide operating temperature range, stable performance, and CCFL or LED backlight variants depending on revision.
| Display Specifications | |
|---|---|
| Manufacturer | PVI (Prime View International) |
| Size | 6.4 inch |
| Resolution | 640 * 480 (VGA), 4:3 aspect ratio |
| Panel Type | a-Si TFT-LCD, TN, normally white, transmissive |
| Color Depth | 262K colors (6-bit RGB) |
| Pixel Arrangement | RGB vertical stripe |
| Optical Performance | |
|---|---|
| Brightness | ~400 cd/m² (typ.) |
| Contrast Ratio | ~400:1 |
| Viewing Angle | 60/60/40/55 (L/R/U/D) |
| Response Time | ~15/25 ms |
| Surface | Anti-glare / matte |
| Electrical Specifications | |
|---|---|
| Interface | Parallel RGB (TTL, 1 channel, 6-bit) |
| Supply Voltage | 5.0V (typ.) |
| Connector | 31-pin standard industrial interface |
- Industrial 6.4" VGA TFT LCD
- Wide temperature range (-30 to 80°C)
- Stable 400 nits brightness for industrial readability
- Standard RGB interface for embedded systems
- Widely used in industrial PC, CNC, medical, and control equipment
- Discontinued, mainly used for replacement and maintenance markets
We are based in Guangdong, China, starting from 2008. We sell to North America (30.00%), South America (20.00%), Southeast Asia (18.00%), Eastern Europe (8.00%), Western Europe (7.00%), Mid East (5.00%), South Asia (3.00%), Northern Europe (2.00%), Central America (2.00%), Southern Europe (2.00%), Oceania (2.00%), Eastern Asia (1.00%). There are about 11-50 people in our office.
Always a pre-production sample before mass production; Always final inspection before shipment.
Touch Screen, LCD Display, Control Board
We maintain long-term relationships with main worldwide LCD manufacturers. We specialize in displays used in Point of Sale, ATM Banking, Medical and Industrial applications. Popular brands in stock are AUO, Hitachi, Kyocera, Sharp, Mitsubishi and NEC.
Accepted Delivery Terms: FOB; Accepted Payment Currency: USD, EUR, HKD; Accepted Payment Type: T/T, L/C, Credit Card, PayPal, Western Union, Cash, Escrow; Language Spoken: English, Chinese, Spanish, German
