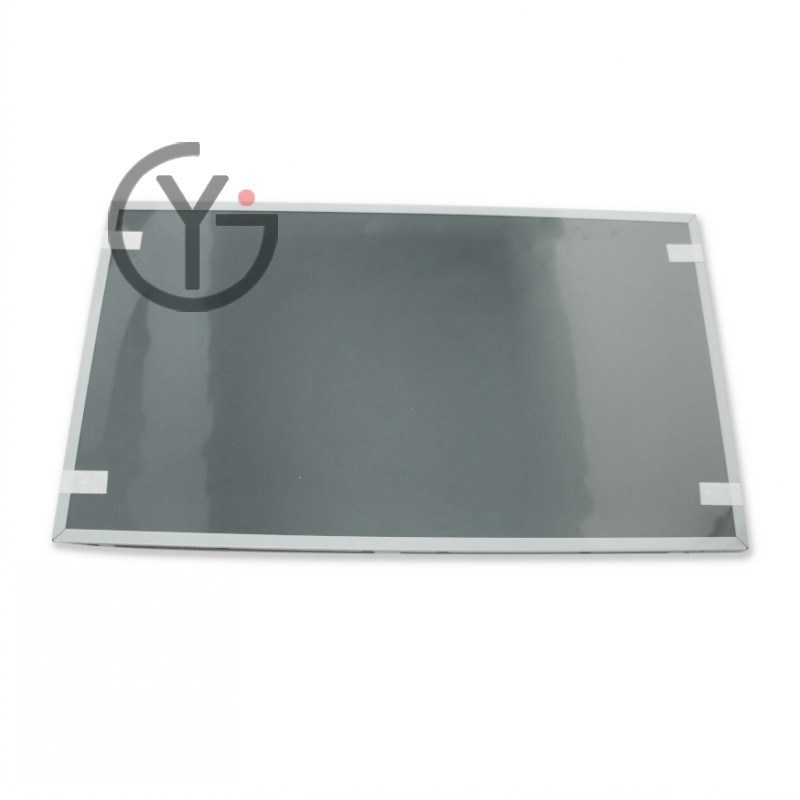

LTM230HL08 IPS 30 pin LVDS 23 inch 1920*1080 LTM230HL08 lcd display for Desktop Monitor
Product Details:
| Place of Origin: | Taiwan, China |
| Brand Name: | YJ |
| Model Number: | LTM230HL08 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 piece |
|---|---|
| Price: | $100-200 / piece |
|
Detail Information |
|||
| Display Size: | 23 Inch | Type: | TFT |
|---|---|---|---|
| Resolution Ratio:: | 1920*1080 | Size Is: | 23 Inch |
| Interface Type:: | LVDS (2 Ch, 8-bit) , 30 Pins Connector | Luminance :: | 250 |
| Contrast Ratio :: | 1000:1 | Ight Source:: | WLED |
| Viewing Angle:: | 89/89/89/89 (Typ.)(CR≥10) | Touch Panel :: | Without |
| Highlight: | 1920*1080 touch lcd panel,1920*1080 lcd display panel |
||
Product Description
LTM230HL08 IPS 30 pin LVDS 23 inch 1920*1080 LTM230HL08 LCD Display for Desktop Monitor
The LTM230HL08 is a 23.0-inch Full HD TFT-LCD panel from Samsung Display, widely used in all-in-one PCs, desktop monitors, and industrial display terminals. It is a high-resolution (1920 *1080) IPS/PLS-type panel with LED backlight and LVDS interface, designed for stable visual performance and wide viewing angles.
Key Specifications
| Display Specifications | |
|---|---|
| Manufacturer | Samsung Display |
| Size | 23.0 inch |
| Resolution | 1920 * 1080 (Full HD), 16:9 aspect ratio |
| Panel Type | a-Si TFT-LCD, PLS (IPS-class), normally black |
| Color Depth | 16.7M colors (6-bit + FRC) |
| Pixel Structure | RGB vertical stripe |
| Optical Performance | |
|---|---|
| Brightness | ~250 cd/m² (typ.) |
| Contrast Ratio | ~1000:1 |
| Viewing Angle | 89°/89°/89°/89° (wide viewing) |
| Viewing Mode | Symmetric wide-view PLS |
| Electrical Specifications | |
|---|---|
| Interface | LVDS (2-channel, 8-bit) |
| Supply Voltage | 5.0V (typ.) |
| Signal Frequency | 60Hz standard operation |
| Connector | 30-pin LVDS type |
Key Features Summary
- 23" Full HD industrial/desktop TFT LCD
- IPS/PLS wide viewing angle technology
- LED backlight (low power, long life)
- LVDS interface for embedded systems
- Used in all-in-one PCs, monitors, kiosks, and industrial terminals
- Stable mass-production Samsung panel with long lifecycle
