FG0700K5DSSWAGT1 7-Inch TFT Liquid Crystal Display with 800*480 Resolution 4-Wire Resistive Touch Model screen lcd
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | YJ |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | $40-45 |
|
Detail Information |
|||
| Type: | TFT, TFT | Display Size: | 7inch Tft Display |
|---|---|---|---|
| Supplier Type: | LCM, A-Si TFT-LCD | Panel Size: | 7'' |
| Brightness: | 250cd/m2 | Panel Pixel: | 800*480 |
| Model: | FG0700K5DSSWAGT1 | Interface: | LVDS |
| Application: | Industrial Application | Backlight: | WLED |
| Contrast Ratio: | 400:1 | ||
| Highlight: | industrial lcd display panel,industrial lcd panel display |
||
Product Description

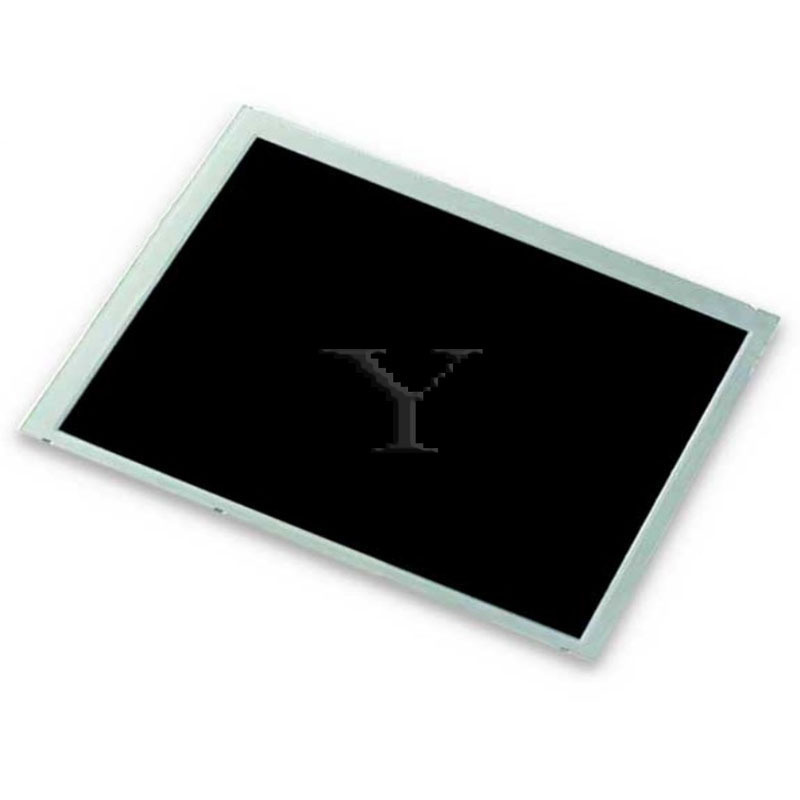

FG0700K5DSSWAGT1 7-Inch TFT LCD Display with 800×480 Resolution and 4-Wire Resistive Touch
The FG0700K5DSSWAGT1 is a professional-grade 7.0-inch a-Si TFT-LCD display panel featuring WVGA resolution of 800 × 480 pixels in a 15:9 wide format. This industrial display module includes an embedded 4-wire resistive touchscreen and is designed for reliable performance in demanding applications.
Technical Specifications
| Specification | Details |
|---|---|
| Display Size | 7.0-inch |
| Resolution | 800 × 480 pixels (WVGA) |
| Aspect Ratio | 15:9 wide format |
| Interface | Parallel RGB (40-pin FPC) |
| Touch Technology | 4-wire resistive touchscreen |
| Display Mode | Transmissive, normally white TN |
| Backlight | White LED (edge-type, ~20,000 hours lifetime) |
| Surface Treatment | Anti-glare hard coating |
| Brightness | 250 cd/m² (typical) |
| Contrast Ratio | 400:1 |
| Viewing Angles | 70° left/right, 60° up/down (CR≥10) |
| Active Area | 152.4 × 91.44 mm |
| Outline Dimensions | 165 × 104.44 × 11.06 mm |
| Operating Temperature | -10°C to +60°C |
| Storage Temperature | -30°C to +70°C |
Key Features
- High-quality 7-inch TFT LCD with resistive touch interface
- WVGA resolution for clear, sharp image quality
- Long-life LED backlight with 20,000-hour typical lifetime
- Anti-glare hard coating surface for reduced reflections
- Wide operating temperature range for industrial environments
- Compact form factor suitable for space-constrained applications
Applications
Ideal for portable devices, digital photo frames, DVD players, industrial control systems, medical equipment, and other embedded display applications requiring a compact, reliable touchscreen LCD solution.
Company Information & Support
About Our Company
Established in 2008 and based in Guangdong, China, we serve customers worldwide including North America (30%), South America (20%), Southeast Asia (18%), Europe (17%), and other global markets.
Quality Assurance
We maintain strict quality control with pre-production samples and final inspection before shipment to ensure product reliability and performance.
Product Range
We specialize in Touch Screens, LCD Displays, and Control Boards for various industrial and commercial applications.
Why Choose Us
We maintain long-term partnerships with leading worldwide LCD manufacturers and specialize in displays for Point of Sale, ATM Banking, Medical, and Industrial applications. Popular brands in stock include AUO, Hitachi, Kyocera, Sharp, Mitsubishi, and NEC.
Services & Support
Accepted Delivery: FOB | Payment: USD, EUR, HKD | Payment Methods: T/T, L/C, Credit Card, PayPal, Western Union, Cash, Escrow | Languages: English, Chinese, Spanish, German
