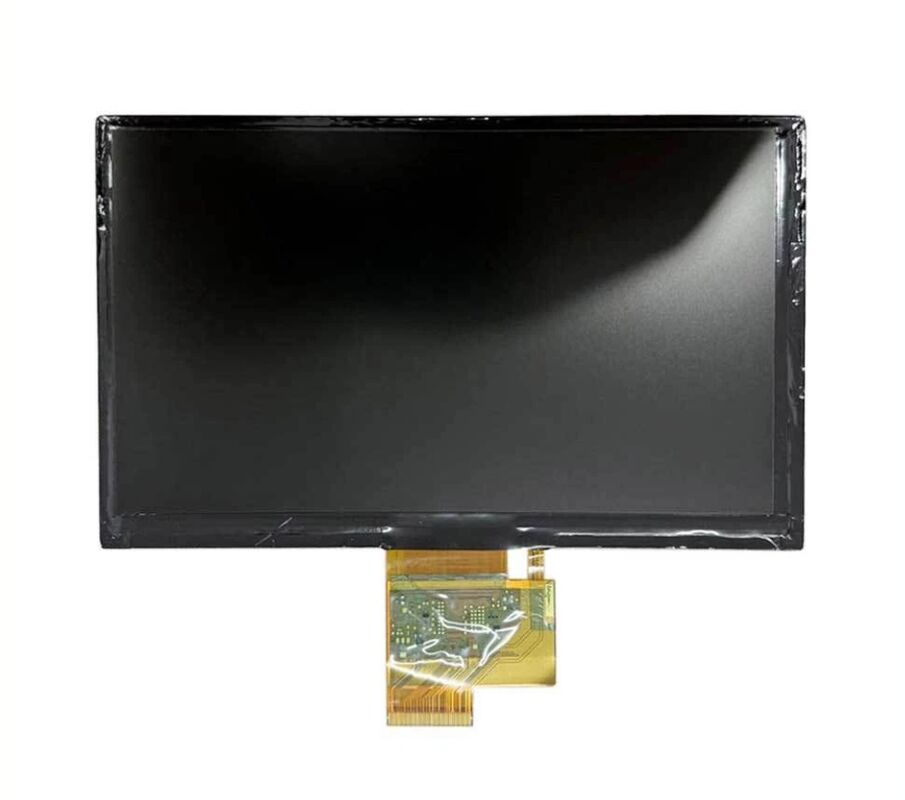

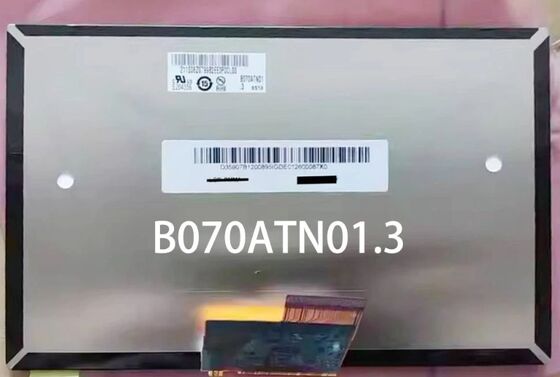

AUO B070ATN01.3 7-Inch 1024×600 LCD Display Screen Panel
Product Details:
| Brand Name: | AUO |
| Model Number: | B070ATN01.3 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|
|
Detail Information |
|||
| Type: | TFT | Supplier Type: | ODM |
|---|---|---|---|
| Brightness: | 350 Cd/m² | Model: | B070ATN01.3 |
| Panel Size: | 7" | Resolution: | 1024*600 |
| Panel Type: | A-Si TFT-LCD | Signal Type: | LVDS (1 Ch, 6/8-bit) , 40 Pins FPC |
| MOQ: | 1PCS | Backlight: | WLED |
| Application: | Industrial Application | ||
| Highlight: | 7 inch lcd panel,7 inch lcd display panel,odm lcd panel |
||
Product Description
AUO B070ATN01.3 7.0" Industrial TFT-LCD Module
The AUO B070ATN01.3 is a widely used 7.0-inch a-Si TFT-LCD module designed for industrial and embedded applications. It features 1024×600 (WSVGA) resolution, 350 cd/m² brightness, and a TN normally white transmissive panel, offering a balance of performance, cost efficiency, and long-term availability.
This model is commonly applied in industrial HMI, control systems, portable devices, and smart terminals, where stable supply and reliable operation are required.
LCD B070ATN01.3 Specifications:
| Brand | AUO |
| Model Name | B070ATN01.3 |
| Display Size | 7.0" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1024(RGB)×600, WSVGA, 17:10 |
| Pixel Format | RGB Vertical Stripe |
| Display Area | 153.6(W)×90(H) mm |
| Panel Weight | 110g (Max.) |
| Outline Size | 167.25(W)×104.65(H)×2.9(D) mm |
| Surface | Antiglare, Hard coating (3H) |
| Brightness | 350 cd/m² (Typ.) |
| Contrast Ratio | 700:1 (Typ.) (TM) |
| Viewing Angle | 75/75/70/75 (Typ.)(CR≥10) |
| Display Mode | TN, Normally White, Transmissive |
| View Direction | 6 o'clock |
| Response Time | 16 (Typ.)(Tr+Td) ms |
| Display Colors | 262K/16.2M, 50% NTSC |
| Frequency | 60Hz |
| Power Cons. | 1.75W (Max.) |
| Light Source | WLED, 30K hrs, Without Driver |
| Interface | LVDS (1 ch, 6/8-bit), 40 pins FPC |
| Input Voltage | 3.3V (Typ.) |
| Environment | Operating Temp. -10 ~ 60 °C, Storage Temp. -30 ~ 70 °C |
Key Features of AUO B070ATN01.3
7.0-inch WSVGA 1024×600 resolution
Provides clear and stable display performance for industrial interfaces
350 cd/m² brightness
Suitable for indoor and semi-outdoor environments
Slim and lightweight design (~2.9 mm)
Ideal for compact embedded systems
LVDS interface (40-pin)
Ensures stable signal transmission and strong anti-interference
Anti-glare surface (3H)
Improves readability under ambient light
Long lifecycle industrial panel
Designed for stable supply and long-term projects
Applications
- Industrial HMI (Human-Machine Interface)
- Embedded control systems
- Medical equipment (non-critical use)
- Portable and handheld terminals
- Smart home control panels
- Test and measurement instruments
FAQ
Does B070ATN01.3 have a touch screen?
No, standard version is non-touch (can be paired with resistive or capacitive touch).
What interface does it use?
LVDS, 40-pin connector.
Is it sunlight readable?
It is suitable for indoor or semi-outdoor use; higher brightness models are recommended for direct sunlight.
Is the LED driver built-in?
No, an external LED driver is required.
