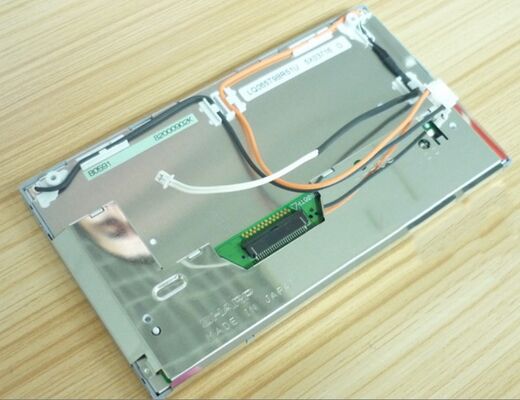

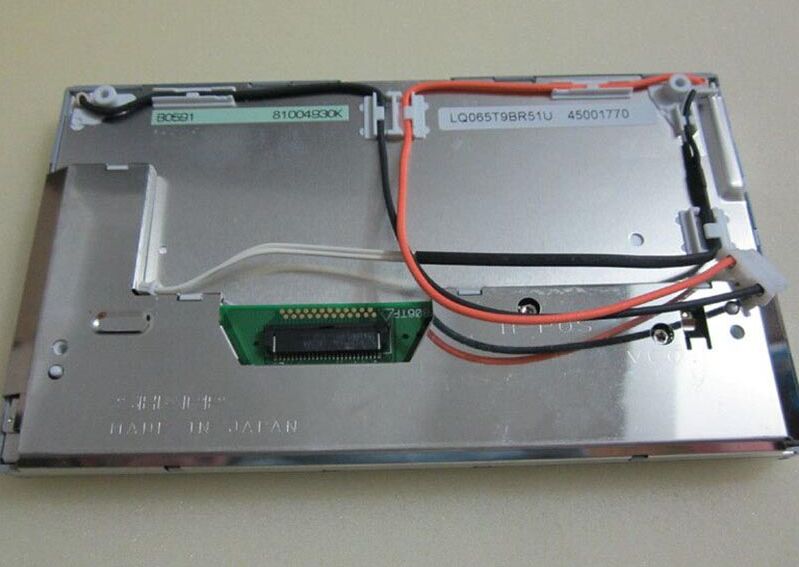

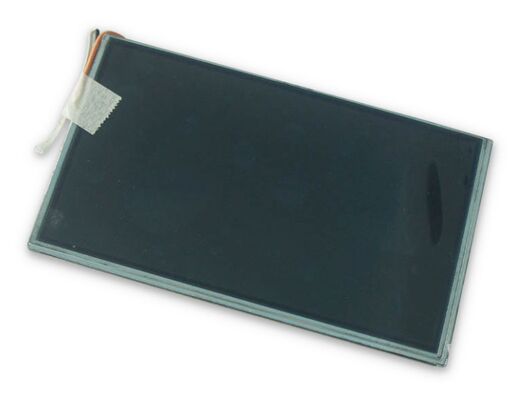

LQ065T9BR51U LCD 6.5" 400*240 Tft Lcd Display
Product Details:
| Place of Origin: | China |
| Brand Name: | none |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 piece |
|---|---|
| Price: | $160 / piece |
|
Detail Information |
|||
| Type: | TFT | Display Size: | 6.5" |
|---|---|---|---|
| Screen Size: | 6.5 | Panel No: | LQ065T9BR51U |
| Touch: | NO | Inverter: | NO |
| Backlight: | CCFL | Screen Type: | TFT-LCD |
| Applications: | Industrial LCD | Product Name: | CCFL Industry LCD Screen |
| Highlight: | ccfl lcd display panel,ccfl lcd panel display,industrial lcd display panel |
||
Product Description
Sharp LQ065T9BR51U - 6.5-inch Industrial/Automotive TFT-LCD Display
High-performance 6.5-inch TFT-LCD display designed for industrial and automotive applications, featuring transflective technology and robust construction.
Technical Specifications
Physical Characteristics
| Diagonal Size | 6.5 inches (165 mm) |
| Outline Dimensions | 153.0 × 91.0 × 8.5 mm (max) |
| Active Area | 143.4 × 80.2 mm |
| Pixel Array | 400 (RGB) × 240 (WQVGA), 16:9 |
| Pixel Pitch | 0.3585 × 0.3305 mm |
| Weight | ≈ 190 g |
Optical Performance
| Technology | a-Si TFT, transflective, normally white |
| Brightness | 400 cd/m² (typical) |
| Contrast Ratio | 300:1 (typical) |
| Viewing Angle | 50/50/60/60 (CR ≥ 10) |
| Response Time | 30 ms (Tr+Td) |
| Color Depth | 262k colors (6-bit RGB) |
| Surface Treatment | Clear, hard-coat 3H |
Backlight System
| Type | Single CCFL, edge-lit |
| Lifespan | 20,000 hours |
| Inverter Requirement | External 680 V rms (5 mA typical) |
Electrical Interface
| Video Signal | Analog RGB (0.7 V p-p), composite-sync-on-green |
| Connector | 20-pin 1.0 mm-pitch |
| Power Supply | 3.3 V logic (150 mA) + 12 V inverter rail |
Environmental & Reliability
| Operating Temperature | -20 °C to +70 °C |
| Storage Temperature | -30 °C to +80 °C |
| Vibration/Shock | Industrial grade 2 G |
Typical Applications
OEM BMW E38/E39/E46/X5 navigation units, factory HMIs, marine GPS, test-instrument displays
