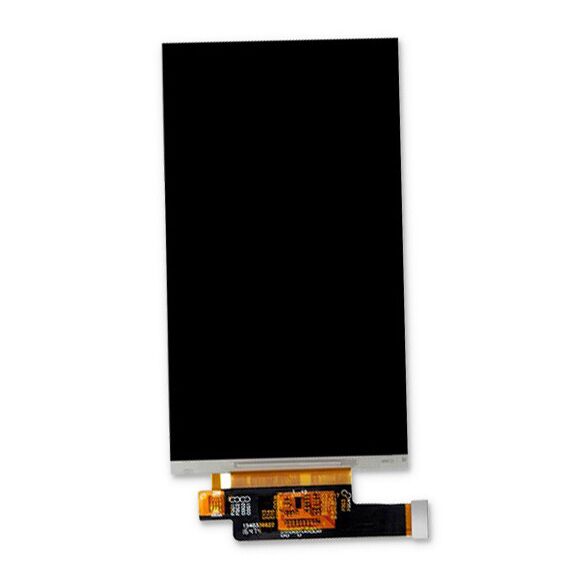

TM050JDHG33 LCD 34 Pins MIPI 5.0" 720*1280 Tft Lcd Display
Product Details:
| Place of Origin: | China |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 piece |
|---|---|
| Price: | $55 / piece |
|
Detail Information |
|||
| Type: | TFT | Display Size: | 5.0" |
|---|---|---|---|
| Resolution: | 720*1280 | Screen Size: | 5.0 |
| Panel No: | TM050JDHG33 | Touch: | NO |
| Inverter: | NO | Screen Type: | TFT-LCD |
| Applications: | Handheld Terminal Application | Product Name: | TM050JDHG33 Industry LCD Screen |
| Signal Type: | MIPI (4 Data Lanes) , 34 Pins Connector | ||
| Highlight: | 720*1280 lcd display panel,720*1280 lcd panel display,34 pins lcd display panel |
||
Product Description
TM050JDHG33 LCD Display
5.0-inch Industrial Portrait TFT-LCD with MIPI Interface
Product Overview
Tianma TM050JDHG33 - 5.0-inch industrial portrait TFT-LCD display module designed for high-performance applications requiring excellent visibility and reliability.
Physical Specifications
• Diagonal: 5.0 in (127 mm)
• Outline Dimensions: 65.4 * 118.9 * 1.82 mm (max)
• Active Area: 62.1 * 110.4 mm
• Pixel Array: 720 (RGB) * 1280 (WXGA, 9:16)
• Pixel Pitch: 0.08625 mm square
• Pixel Density: 294 ppi
• Weight: 27 g (net)
Optical Performance
• Technology: a-Si TFT, SFT, normally-black, transmissive
• Brightness: 600 cd/m² (typical)
• Contrast Ratio: 800:1 (typical)
• Viewing Angle: 88°/88°/88°/88° (CR ≥ 10) - full-symmetry IPS-class
• Response Time: 30 ms (Tr+Td typical)
• Color Depth: 16.7 M (8-bit)
• Color Gamut: 70% NTSC, 98% sRGB, 79% DCI-P3, 56% Rec.2020
• White Point: 6444 K, uniformity Δ 9-pt 1.25/1.33 (typical/max)
• Surface: Clear, hard-coating (3H)
Backlight System
• Type: WLED, edge-lit, 6S2P array
• Lifetime: 20,000 hours (typical)
• Drive: 19.2 V, 20 mA (typical); no on-board driver supplied
• Power Consumption: 0.77 W typical / 1.23 W max
Electrical Interface
• Signal: MIPI DSI-2, 4 data lanes, 34-pin Hirose DF30FC-0.4 mm connector
• Supply Voltage: 1.8 V (VDDIO) / 2.8 V (VCC)
• Power Consumption: 100 mW typical / 120 mW max (panel only)
• Refresh Rate: 60 Hz vertical
Environmental & Reliability
• Operating Temperature: -20°C to +70°C
• Storage Temperature: -30°C to +80°C
• RoHS Compliant
• Vibration Capability: 2.9 g (industrial grade)
Driver & Production Details
• COG-bonded IC: ILI9881C (supports 720 * 1280 MIPI)
• Scan Direction: Fixed (no flip)
• Production Status: In production since Q3 2016, steady supply
• Options: No touch, no cover glass - bare LCD module only
Applications
High-brightness handheld terminals, industrial PDAs, outdoor instrumentation, drones, VR/AR prototypes, and any product requiring a slim, portrait, sunlight-readable 5-inch display.
