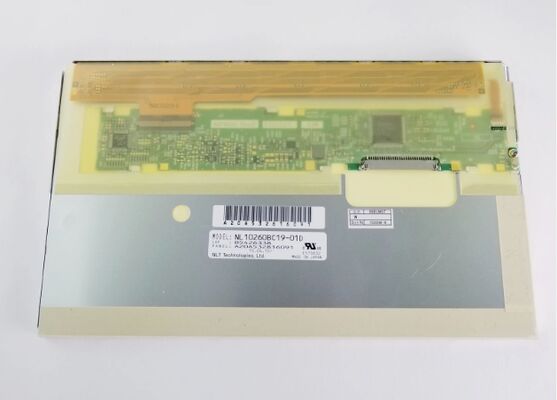

NLT NL10260BC19-01D LCD 8.9'' Inch LCD Screen Display
Product Details:
| Place of Origin: | China |
| Brand Name: | NEC |
| Model Number: | NL10260BC19-01D |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|
|
Detail Information |
|||
| Type: | TFT-LCD | Supplier Type: | ODM |
|---|---|---|---|
| Model: | NL10260BC19-01D | Size: | 8.9-inch |
| Resolution: | 1024(RGB)*600, WSVGA 133PPI | Panel Type: | LTPS TFT-LCD, LCM |
| Pixel Format: | RGB Vertical Stripe | Touch Panel: | Without |
| Highlight: | odm lcd display panel,odm lcd panel display |
||
Product Description
NLT (NEC) NL10260BC19-01D 8.9" Industrial TFT-LCD Module
The NLT (NEC) NL10260BC19-01D is a high-reliability 8.9-inch a-Si TFT-LCD module designed for industrial applications. It features 1024×600 (WSVGA) resolution, ultra-wide viewing angles using UA-SFT technology, and a wide operating temperature range, making it suitable for demanding environments.
With LED backlight, LVDS interface, and replaceable backlight design, this panel is widely used in industrial control systems, transportation, medical equipment, and embedded devices.
LCD NL10260BC19-01D Specifications:
| Brand | NEC |
| Model | NL10260BC19-01D |
| Diagonal Size | 8.9 inch |
| Type | a-Si TFT-LCD, LCM |
| Resolution | 1024(RGB)×600, WSVGA, 17:10 |
| Dot Layout | RGB Vertical Stripe |
| Active Area | 195.072(H)×113.4(V) mm |
| Physical Size | 214(H)×129(V)×6.2(D) mm |
| Mass | 170/180g (Typ./Max.) |
| Surface Coating | Antiglare, Hard coating (3H) |
| Luminance | 300 cd/m² (Typ.) |
| Contrast Ratio | 700:1 (Typ.) (TM) |
| View Direction | Symmetry |
| Response Time | 10/15 (Typ.)(Tr/Td) ms |
| Viewing Angle | 88/88/88/88 (Typ.)(CR≥10) |
| Operating Mode | UA-SFT, Normally Black, Transmissive |
| Support Color | 262K/16.7M, 60% NTSC |
| Touch Panel | Without |
| Power Usage | 3.0W (Typ.) |
| Light Source | WLED, 26K hrs, Without Driver |
| Frame Rate | 60Hz |
| Interface Type | LVDS (1 ch, 6/8-bit), 30 pins Connector |
| Power Supply | 3.3V (Typ.) |
| Environment | Operating Temperature -20 ~ 70 °C, Storage Temperature -30 ~ 80 °C, Vibration 2.0G (19.6 m/s²) |
Key Features of NL10260BC19-01D
8.9-inch WSVGA 1024×600 resolution
Wide-format display suitable for modern industrial interfaces
UA-SFT wide viewing angle technology
88° full viewing angles (IPS-like performance) for consistent image quality
300 cd/m² brightness
Suitable for indoor and semi-outdoor industrial environments
LVDS interface (30-pin)
Reliable, low-noise signal transmission for embedded systems
Replaceable LED backlight
Simplifies maintenance and extends product lifecycle
Wide temperature range (-20°C to 70°C)
Stable performance in industrial environments
6/8-bit selectable color depth
Flexible integration for different system requirements
Applications
- Industrial HMI (Human-Machine Interface)
- Industrial computers and embedded systems
- Transportation and vehicle displays
- Medical equipment (non-critical use)
- Test and measurement instruments
- Factory automation systems
FAQ
Is NL10260BC19-01D IPS?
It uses UA-SFT technology, which provides IPS-like wide viewing angles.
Does it support touch?
No, standard version is non-touch (can be paired with capacitive or resistive touch).
What interface does it use?
LVDS (1 channel, 6/8-bit), 30-pin connector.
Is the backlight replaceable?
Yes, it supports a replaceable LED backlight design.
