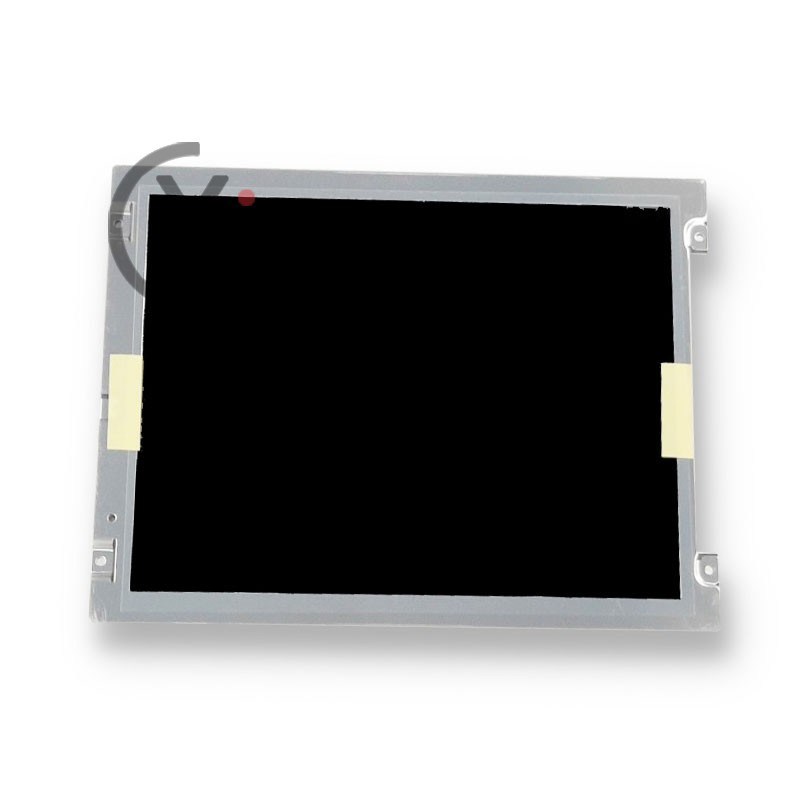

NL6448BC26-26D LCD 8.4 inch 640*480 RGB lcd panel
Product Details:
| Place of Origin: | Japan |
| Brand Name: | YJ |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 piece |
|---|---|
| Price: | $198 / piece |
|
Detail Information |
|||
| Type: | TFT | Display Size: | 8.4 Inch |
|---|---|---|---|
| Supplier Type: | Angecy | Model: | NL6448BC26-26D |
| Panel Type: | A-Si TFT-LCD | Luminance: | 500 |
| Contrast Ratio: | 1000 : 1 | Signal Type: | 31 Pins CMOS (1 Ch, 6-bit) , Connector |
| Display Color: | 262k | Size: | 8.4 |
| Resolution: | 640*480 | Backlight: | WLED |
| Work Mode: | TN, Normally White, Transmissive | ||
| Highlight: | 8.4 inch lcd panel,8.4 inch lcd display panel,262k lcd panel |
||
Product Description
NL6448BC26-26D LCD 8.4 inch 640*480 RGB LCD Panel
Industrial TFT LCD Panel Overview
The NL6448BC26-26D is an 8.4-inch a-Si TFT-LCD display module originally manufactured under the NEC/Tianma family of industrial panels. It offers a robust 4:3 format with classic VGA resolution, high brightness, and wide operating temperature range, making it well suited for industrial PCs, control systems, kiosk displays, and other embedded applications.
Technical Specifications
| Specification | Details |
|---|---|
| Panel Size | 8.4″ diagonal |
| Resolution | 640 * 480 (VGA) |
| Display Mode | TN, Normally White, Transmissive |
| Brightness | ~500 cd/m² (typical) |
| Contrast Ratio | ~1000:1 (typical) |
| Colors | ~262k (6-bit) with optional 16.7M (8-bit) support |
| Interface | CMOS/LVDS options depending on revision (typically 31-pin CMOS for -26D) |
| Backlight | WLED (~70,000 hours without driver) |
| Viewing Angles | ~80°/80°/80°/80° (L/R/U/D) |
| Response Time | ~18 ms typical |
| Operating Temperature | -30 °C to +80 °C |
| Outline Dimensions | ~200 * 152 * ~8.7 mm |
Typical Applications
Industrial PCs, embedded display systems, operator terminals, kiosk/HMI screens, and rugged equipment interfaces requiring a high-visibility mid-sized VGA display.
