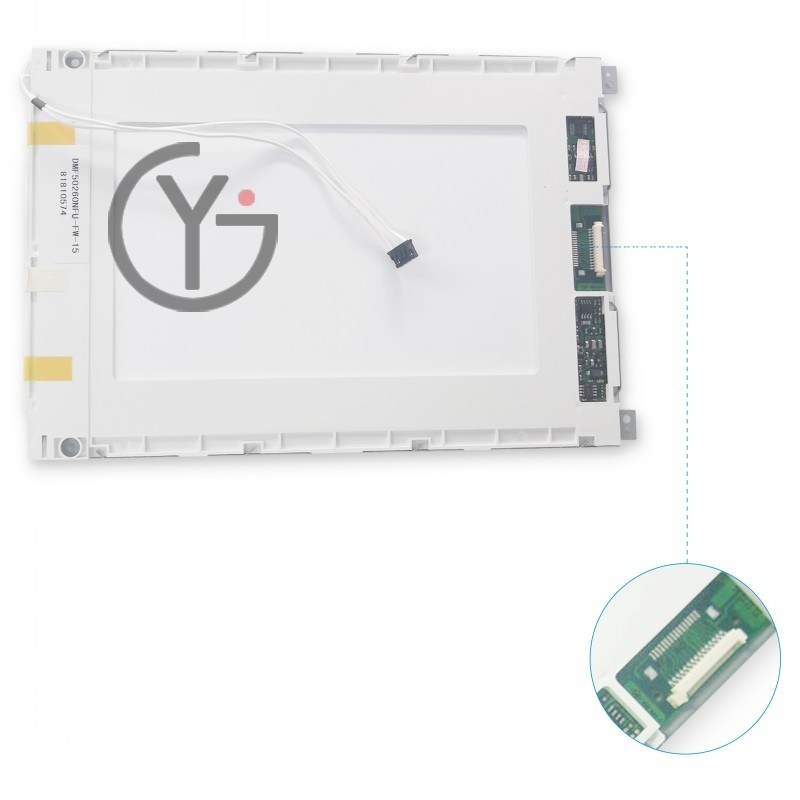

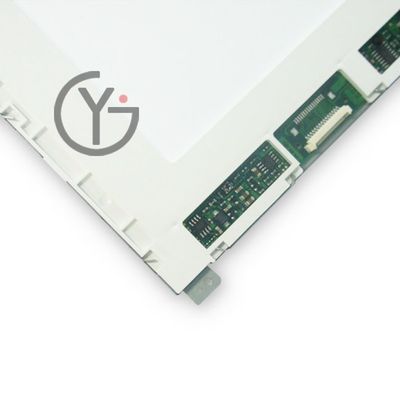

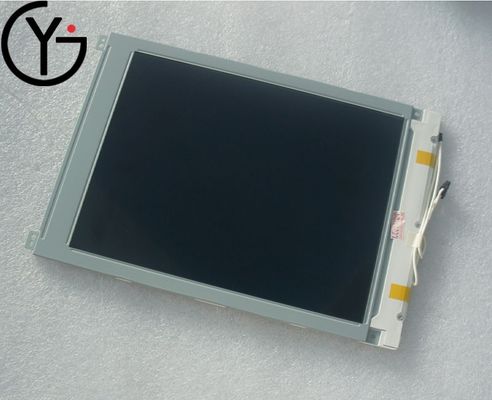

DMF50260NFU-FW-15 LCD 9.4 Inch VGA LCD Display Monochrome FSTN LCD Display 640x480
Product Details:
| Place of Origin: | Japan |
| Brand Name: | OPTREX |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 piece |
|---|---|
| Price: | $180 / piece |
|
Detail Information |
|||
| Name: | VGA LCD Display | Type: | TFT |
|---|---|---|---|
| Display Size: | 9.4" | Supplier Type: | Angecy |
| Model: | DMF50260NFU-FW-15 | Panel Type: | FSTN-LCD |
| General Grade: | A Grade | Composition: | Panel |
| Signal Type: | Parallel Data (4-bit) , 15 Pins , Connector | Display Color: | Monochrome |
| MOQ: | 1PCS | Resolution: | 640*480 |
| Size: | 9.4'' | Warranty: | 180 Days |
| Highlight: | 9.4 Inch VGA LCD Display,Monochrome FSTN LCD Display,FSTN LCD Display 640x480 |
||
Product Description
DMF50260NFU-FW-15 LCD 9.4 Inch VGA LCD Display Monochrome FSTN LCD Display 640x480
DMF50260NFU-FW-15 LCD 9.4 Inch VGA LCD Display Monochrome FSTN LCD Display 640x480
Display Specifications
- Type: 9.4-inch FSTN monochrome LCD module with CCFL backlight, landscape orientation
- Display size: 9.4 inch diagonal
- Resolution: 640 × 480 (VGA), 84 PPI
- Display type: FSTN monochrome LCD, transmissive
- Active area: ~191.97 mm × 143.97 mm
- Outline dimensions: ~260 mm × 174 mm × 8.5 mm (depth)
- Backlight: 1 × CCFL lamp (edge type), typical life ~10,000 h
- Interface: Parallel data (4-bit), 15-pin connector
- Input voltage: ~5 V typical for LCD
Product Overview
The DMF50260NFU-FW-15 is a large-format monochrome graphic LCD module originally manufactured by Optrex (now part of Kyocera). It uses an FSTN panel with a CCFL backlight, providing a 9.4-inch landscape display with VGA resolution suitable for industrial equipment and human-machine interfaces. The module accepts a simple parallel data interface and is designed for applications where a rugged, high-contrast monochrome display is needed.
